Techreo Products
Structural Tubes / Booms with Customized Properties
If your application needs to optimize against any of the following challenges, our cutting-edge technology enables a design with the right properties to meet your needs.
- Lightweight
- Deflection
- Vibration / damping
Many robotic automation applications face challenges with these properties for their end of arm tooling / end effectors.
Industries such as stamping, packaging or part handling can utilize Techreo technology to improve their automated systems accuracy and cycle times.

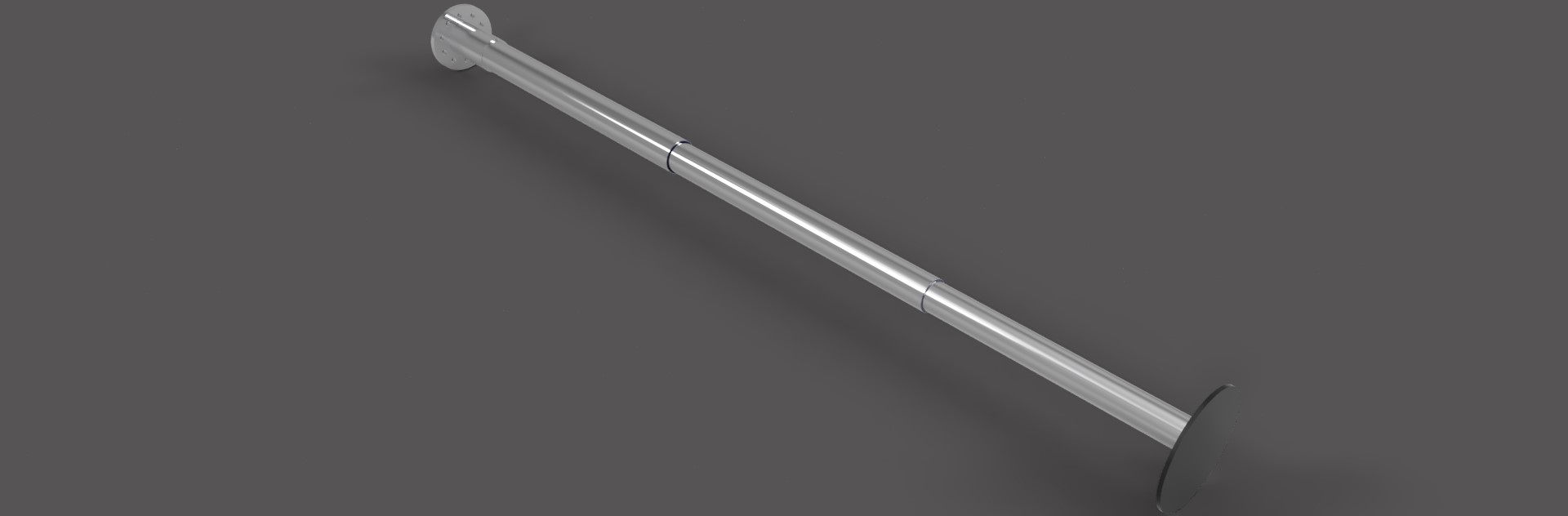

Stepped Tubes
If your application requires extra-long reach (7’ up to 15’) Techreo can create a stepped-tube design as shown. Applications which benefit from our structures’ stability and accuracy at long reach include:
- Aircraft painting and ablation
- Long reach welding and inspection
Materials Available
Techreo uses a wide range of materials and combines them using structural adhesive (or welding) to produce our breakthrough mechanical properties.
Stainless – Carbon – Copper
Stainless – Carbon – Stainless-
Stainless – Carbon – Inconel®
Metals: In terms of metals, coiled steel options are vast, so the possibilities of our composite tubes are nearly limitless. We have experience utilizing:
- Carbon Steel
- Stainless Steel
- Aluminum
- Titanium and other “Exotics” are available
Carbon Fiber Tubes: Techreo customers have the option to use carbon fiber tubes as a component – but without the negatives of clamping damage and susceptibility to operational damage. As a result, Techreo offers breakthrough properties in terms of deflection and damping with robust clamping and enhanced durability.
